· Temperature difference across the entire cabinet < 5°C
· Three-tier fire protection, high safety
· High energy density, flexible layout and scalability
· Modular prefabrication, no on-site installation required
Parameters/Model | EnerGalactic-2418-Na | ||

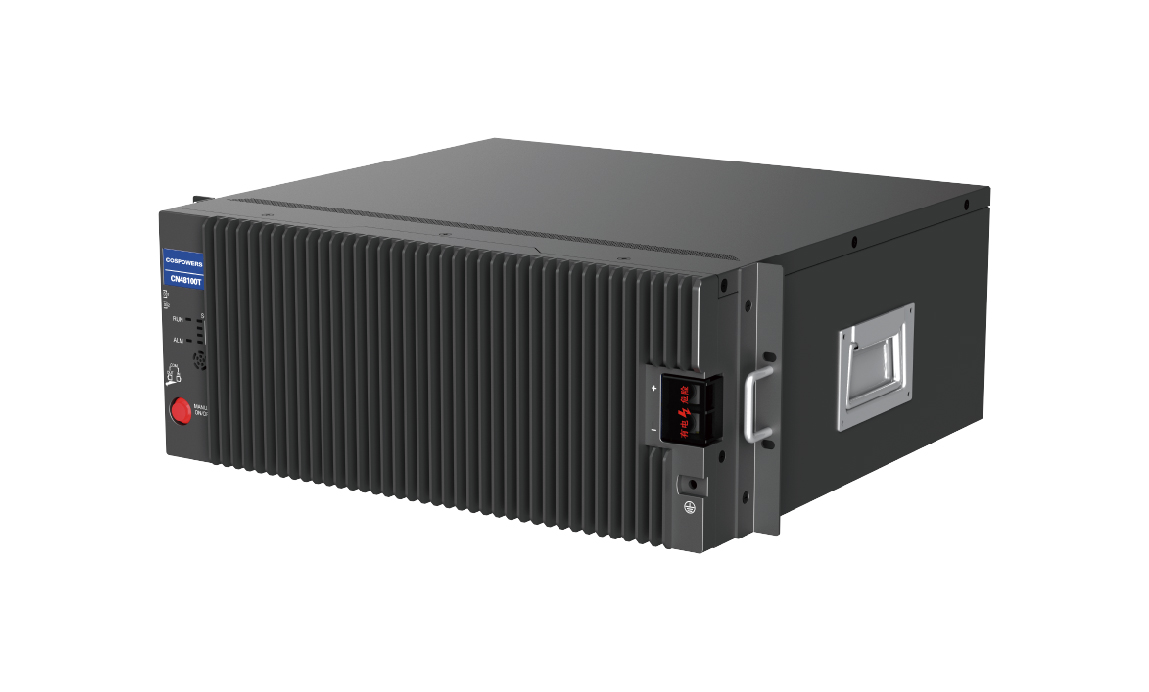

| Battery Module | Cell Capacity | 170Ah-Na | |
| Module Configuration | 1P52S | 1P104S | |
| Module Nominal Voltage | 148.2V | 296.4V | |
| Module Energy | 25.194kWh | 50.388kWh | |
| Protection Level | IP67 | ||
| Battery Rack | Number of Modules | 8pcs | 4pcs |
| Battery Rack Nominal Voltage | DC1185.6V | ||
| Voltage Range | 624~1456V | ||
| Single Rack Energy | 201.552kWh | ||
| Battery Enclosure | Number of Battery Racks | 12pcs | |
| Battery System Energy | 2418kWh | ||
| Dimensions(W*D*H) | 6058*2438*2896mm | ||
| Weight | ≤43t | ||
| Cooling Method | Liquid Cooling | ||
| Protection Level | IP54 | ||
| Other Parameters | Compliance Standards | IEC62619、UL1973、UL9540A、UN38.3 | |
